The advent of automotive surround view cameras has revolutionized the way drivers perceive their vehicles' surroundings, making driving safer and more convenient. Surround view systems offer a 360-degree bird's-eye view of the vehicle, which eliminates blind spots and improves situational awareness. However, the quality of the imagery and the performance of the system depend on the type of lenses used in the cameras. In this article, we will delve into the world of lenses for automotive surround view and explore their impact on vehicle safety.
The quality of the Lenses for Automotive Surround View plays a crucial role in the performance of the system. The lenses for automotive surround view are responsible for capturing the images of the vehicle's surroundings and transmitting them to the processing unit. The better the quality of the lenses, the higher the resolution and clarity of the images. High-quality lenses ensure that the images are free from distortion, glare, and other visual artifacts, which can affect the driver's ability to interpret the scene accurately.
There are several types of lenses used in surround view cameras, each with its unique characteristics and advantages. The most common types of lenses are:
Wide-angle lenses have a wide field of view, which makes them ideal for capturing a broader area of the surroundings. They offer a large viewing angle, typically between 120 and 180 degrees, and can capture images that cover a larger area than conventional lenses. Wide-angle lenses are useful for parking and maneuvering in tight spaces, as they provide a more comprehensive view of the surroundings.

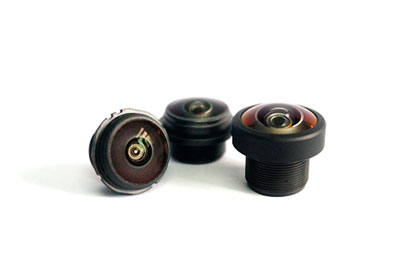

Fish-eye lenses are ultra-wide-angle lenses that provide a hemispherical view of the surroundings. They have a viewing angle of up to 180 degrees and can capture images of the entire surroundings, including the sky and the ground. Fish-eye lenses offer a unique perspective of the surroundings, which can be useful for parking and maneuvering in confined spaces.
Telephoto lenses have a narrow field of view and are useful for capturing distant objects. They offer a high magnification ratio, which makes distant objects appear closer than they are. Telephoto lenses are useful for detecting obstacles and hazards that are far away from the vehicle, such as pedestrians, animals, and other vehicles.
Choosing the right lenses for surround view cameras depends on several factors, including:
Image quality is a critical factor when choosing lenses for surround view cameras. High-quality lenses provide clear, sharp, and detailed images, which are essential for accurate interpretation of the surroundings.
The field of view is the angle of the image captured by the lens. Choosing lenses with a wide field of view provides a broader view of the surroundings and eliminates blind spots.
The focal length is the distance between the lens and the image sensor. Lenses with shorter focal lengths have wider fields of view, while lenses with longer focal lengths have narrower fields of view.
The size and weight of the lenses can affect the design and placement of the cameras. Smaller and lighter lenses are more versatile and can be mounted in various locations around the vehicle.
The lenses for automotive surround view are a critical component of the system and have a significant impact on vehicle safety. Choosing the right lenses depends on several factors, including image quality, field of view, focal length, and lens size and weight. By selecting the right lenses for their surround view cameras, drivers can enhance their situational awareness and avoid accidents.
